Tungsten Products

Tungsten Needle

Tungsten needles are made by materials with high melting point, strong corrosion resistance, high density, good thermal conductivity and superior electrical conductivity. It’s important for argon arc and ...

Tungsten Powder
Tungsten Powder

According to granularity standard, Tungsten powder can be divided into coarse, medium and fine granularity type. It is of silver powder, and its impurity content is based on the national standard ...

Tungsten Granule
Tungsten Granule

Tungsten granule, also known as tungsten particle, is small particles from tungsten metal. Its particle size is about 20-40 mesh and its high purity above 99.95%...

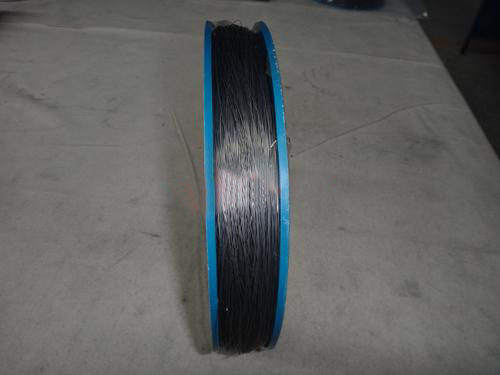

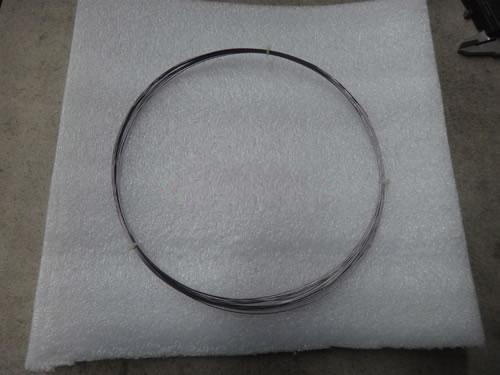

Tungsten Wire
Tungsten Wire

Tungsten wire, also known as wolfram wire, normally has two different surfaces as black surface and cleaned surface. We mainly offer two kinds of tungsten wire, that is, pure type and K-Al-Si doped type...

Tungsten Filament
Tungsten Filament

Tungsten filament (tungsten evaporation coil) is of many metal shapes and generally consists of one or several streams of doped tungsten wires. Multi-strand filaments are generally preferred because they offer...

Tungsten Rod
Tungsten Rod

Tungsten rod (tungsten bar) is of high-purity, high-density and excellent high-temperature, proving no deformation. We can offer different surfaces tungsten rod like black surface, alkaline washed surface...

Tungsten Plate and Sheet
Tungsten Plate and Sheet

Tungsten plate (tungsten sheet) possesses the properties of high density, balanced internal structure and excellent high creep strength, high temperature resistance, high chemical purity, tight and uniform tolerances...

Tungsten Boat
Tungsten Boat

Tungsten boat is made from tungsten sheet through a process of cutting, bending, welding and riveting. The material in tungsten evaporation boat that is to form the subsequent layer is heated in a vacuum chamber ...

Tungsten Electrode
Tungsten Electrode

Tungsten electrodes feature high melting point, corrosion resistance, high density and good heat conduction. They are mainly used for welding. These non-consumable electrodes come in a variety of sizes and lengths ...

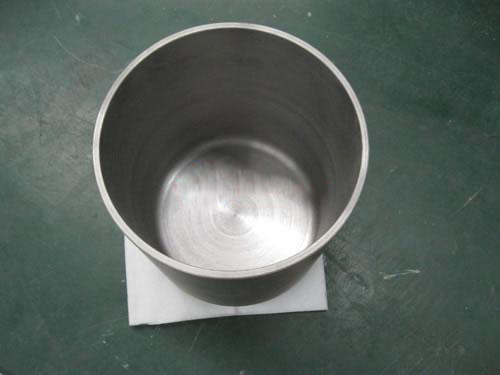

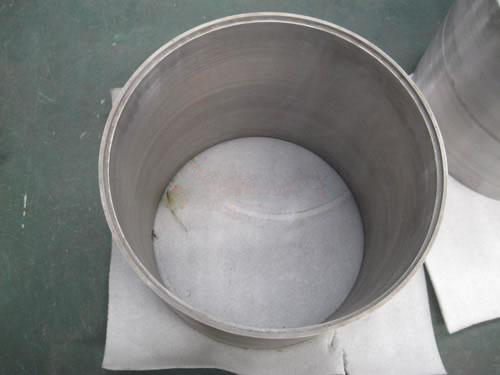

Tungsten Crucible
Tungsten Crucible

Tungsten crucible, also known as tungsten melting pot, can be mainly divided into such molding ways as sintering molding (powder metallurgy technology is applied thereto), impact molding, spinning molding...

Tungsten Tube
Tungsten Tube

Tungsten tube, also called tungsten pipe, is widely applied in high temperature environments due to the features of tungsten that its melting point reaches 3410℃ and its density is above 18.2g/cm3...

Tungsten Target
Tungsten Target

Tungsten target is a flat rectangle of known color and brightness, fixed to the spacecraft so the instruments on the movable scan platform (cameras, infrared instrument, etc.) can point to a predictable target ...

Tungsten Rhenium Wire
Tungsten Rhenium Wire

Tungsten rhenium wire (tungsten-rhenium wire), solid, round and smooth, can be free of weld joints, slivers, kinks, pits or nicks exceeding 5 % of diameter. It has a uniformly clean surface and is free of discoloration...

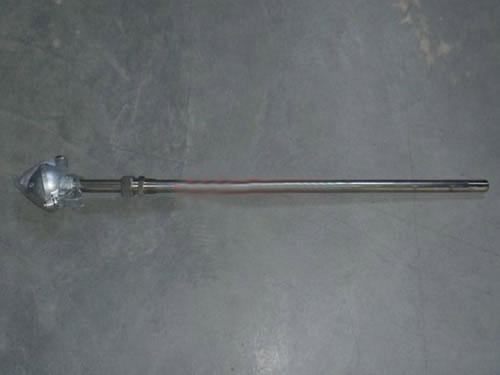

Tungsten Rhenium Thermocouple
Tungsten Rhenium Thermocouple

Tungsten rhenium thermocouple (tungsten-rhenium thermocouple) has good chemical stability, large electromotive force, and high sensitivity in a non-oxidizing atmosphere. It can be directly used to measure...

Tungsten Fabricated Products
Tungsten Fabricated Products

Tungsten fabricated products, also known as tungsten profiled products, have very wide use in high temperature field and medical mask field owing to tungsten's such properties as high melting point and high density...

Introduction
Tungsten has the highest melting point (3410°C) and the lowest vapor pressure among all the metals, which makes it the best choice for a variety of high-temperature operating environment. Tungsten products feature high melting point, low thermal expansion, high resistivity, low vapor pressure, good thermal conductivity and high density. They are mainly applied in such industries as electronics, aerospace, chemical and medical industries.

Application
Pure tungsten is mainly used for electrical and electronic equipment. Owing to its fairly high melting point, it is commonly used in aerospace and high-temperature applications, such as electronics, heating and welding. Tungsten, besides, is very hard and very close, which makes it ideal for making heavy metal alloys that can be used on armor, heat sinks and in high-density applications like ballasting, weight balancing, and boats and aircrafts ballasting. Pure tungsten products are broadly utilized for furnace parts, semiconductor substrate components, electron tube, emitting cathode for electron beam evaporation, cathode and anode for ion implantation, sintered capacitor of tube / vessel, x-ray diagnosis, crucible, heating elements, x-ray radiation shielding, sputtering target and electrode.

Classification and Overview
1. Tungsten Powder: It is the main raw material for the processing of powder metallurgy tungsten products and tungsten alloys.
2. Tungsten Granule: It is mainly used for the analysis of infrared carbon and sulfur oxide fluxing comburents while helping to reduce the melting point of the comburents and facilitate the release of carbon and sulfur.
3. Tungsten Wire: It is mainly used as tube lead, special lamp filament like Halogen Lamp Filament, heating element in high-temperature furnace, vacuum deposition material of the electronics industry, and welding electrodes.
4. Tungsten Filament: This tungsten product is applied in the fields such as thin film technology, metal evaporation, mirror processing, and picture tube industry.
5. Tungsten Rod: Sintering tungsten rod, as the material, is mainly used in pulling tungsten wire and forging tungsten rod. It is widely applied for tungsten crucible's supports in the sapphire growth furnace, electrodes, heating elements, connections and support rods in high-temperature furnace and electrodes in the rare earth metal industry.
6. Tungsten Plate and Sheet: This tungsten product is widely used as reflection shield, cover plate applied in the sapphire growth furnace, reflection shield, heating tape, connecting pieces applied in vacuum furnace, sputtering target applied in plasma coating film, and as high temperature resistance boats, and parts in the ion implantation industry.
7. Tungsten Sheet: It is used in high and extremely high temperatures, as equipment for high-temperature furnaces (heat screens, supports and other reinforcing elements) and also in the aerospace industry.
8. Tungsten Boat: This tungsten product is used as a special and effective boat vessel, which is widely used in metal evaporation, electron beam splash, and the heat process with sintering and annealing in vacuum coating industries.
9. Tungsten Electrode: It features high melting point, corrosion resistance, high density and good heat conduction, and is mainly used for welding.
1) Pure Tungsten Electrode: This tungsten product is widely used as welding electrode under AC condition.
2) Thoriated Tungsten Electrode: It is exceptional for DC electrode negative or straight polarity on carbon and stainless steel, nickel and titanium applications.
3) Lanthanated Tungsten Electrode: Like ceriated electrodes, it allows the arc to be started and maintained at lower voltages.
4) Cerium Tungsten Electrode: It's chiefly used for DC welding in the low current environment.
10. Tungsten Crucible: This tungsten product is widely used as the core containers in the industrial furnaces like sapphire growth furnace, quartz glass melting furnace, single crystal furnace, induction furnace and rare earth smelting furnace.
11. Tungsten Tube: Tungsten tube products are chiefly utilized for thermocouple protection tubes in the high temperature furnace, and supporting parts in the sapphire crystal furnace and high temperature sintering furnace, etc.
12. Tungsten Target: This tungsten product is mainly applied in the fields of aerospace, rare earth smelting, electric light, chemical equipment, medical equipment, metallurgical machinery, smelting equipment and petroleum, etc.
1) Pure Tungsten Target: It has great machining property and high-temperature property, can withstand extreme thermal stress in temperatures of over 2,000℃.
2) Tungsten Alloy Target: It can be applied in a great many of fields like aerospace, rare earth smelting, electric light, chemical equipment, medical equipment, metallurgical machinery, smelting equipment and petroleum.
13. Tungsten Rhenium Wire: This tungsten product is mainly used for the production of dual tungsten rhenium wires, electrodes of high-performance lamps, electrodes of laser and cathodes of electron tubes, etc.
14. Tungsten Rhenium Thermocouple: It can partially substitute for platinum and rhodium thermocouple as ultra-high temperature measurement tools used in high-tech metallurgical industry, high-temperature electronic thermoelectric system structure engineering and space delivery vehicles, and nuclear reactors.
15. Tungsten Fabricated Products: Those tungsten products are widely used in high temperature field and medical mask field, especially in aerospace and nuclear industries and other cutting-edge fields where they takes up an indispensable position.

Our company is a professional manufacturer and supplier of various tungsten products in China, specifically including tungsten powder, tungsten rod, tungsten tube, tungsten electrode, tungsten wire, tungsten granule and so on, and has passed the ISO9001-2008 international quality administrative system certification. Our products are mainly exported to United States, South Korea, Russia, Japan, Germany, France, Brazil, Ukraine, Italy and other countries.
