Anviloy for Die Casting

Anviloy metals containing tungsten and molybdenum are well-recognized to solve the problems with molds (insufficient thermal conductivity, high wear, sticking of aluminum) in die casting. The most commonly used hi-tech tungsten materials in the die casting industry are Anviloy1150, Anviloy1350 and Anviloy weld rod. Using Anviloy tungsten alloys during the foundry process can both improve quality and lower costs.

Anviloy series is material specified by North American Die Casting Association (NADCA).

ANVILOY Special Alloys for Die Casting

  Density UTS Rm Elongation Young’s Modulus Hardness Resistance (300K) Heat Conductivity λ (300K)
  g/cm³ MPa % GPa HV10 μΩ∙cm W/(m. K)
Anviloy® 1050 17,0 900 > 20 330 300 na 70
Anviloy® 1150 17,3 950 > 10 360 350 na 90
Anviloy® 1350 18,5 800 > 10 370 310 10 65
Anviloy® Weld Rod na na na na na na na

*According SAE: AMS-T-21014, ASTM B777, AMS 7725

1. Die cast tooling
2. Extrusion dies
3. Hot runner nozzles
4. Vibration and tool chatter reduction
5. Plastic injection molding
6. Shot sleeves

Anviloy 1150 vs H-13

Typical Mechanical Properties at Room Temperature

Anviloy 1150 H-13
Ultimate Tensile Strength, psi (MPa) 140000 (965) 233000 (1610)
Yield Strength, 0.2%offset, psi (MPa) 125000 (862) 192000 (1320)
Elongation, % in 2 inches 3.0 13.1
Hardness, HRC 34 45
Modulus of Elasticity, psi×106 (GPa) 49.0 (338) 30.5 (210)

Tensile Properties at Elevated Temperature

  Anviloy 1150 H-13
UTS, psi (MPa) at 1000℉ (537℃) 113000 (779) 142000 (979)
UTS, psi (MPa) at 1200℉ (648℃) 105000 (724) 85000 (586)
UTS, psi (MPa) at 1500℉ (815℃) 75000 (517) 20500 (141)

Coefficient of Thermal Expansion

68-750℉ (20-400℃) 2.52×10-6(4.54×10)-6 6.8×10-6(12.2×10)-6
68-1450℉(20-790℃) 2.92×10-6(5.26×10)-6 7.5×10-6(13.5×10)-6
Thermal Conductivity [W/m. K] 500℃ 70.2 28.4
Density, ib/in3 (g/cm3) 0.623(17.25) 0.280(7.76)

Anviloy vs. Tool Steel 1.2343

1. 4 times higher thermal conductivity.
2. 5 times better heat crack resistant.
3. 2 times lower soldering tendency.

Features and Benefits of Anviloy

1. High resistance against dilution Reduces corrosion and erosion.
2. High hardness and strength at high temperature can increase stability of form and dimensions.
3. Superior thermal conductivity and tempering resistance help remove heat quickly and reduce soldering and heat cracks
4. Easy to machine and can be machined to any forms you need.

Main Products

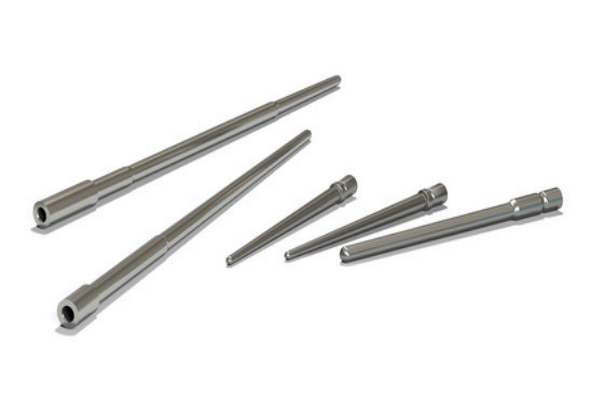

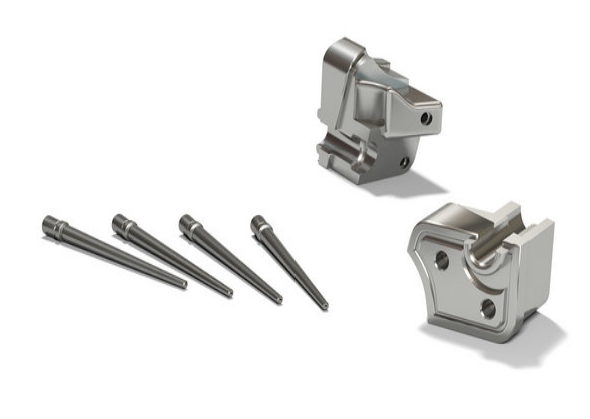

1. Core pins and inserts.
Anviloy® core pins are widely used to remove heat fast, increase the service time and reduce sticking of aluminum to the pins.
Inserts are mostly used to reduce wear of certain mold areas and remove the heat faster to improve cast quality and decrease cycle times.

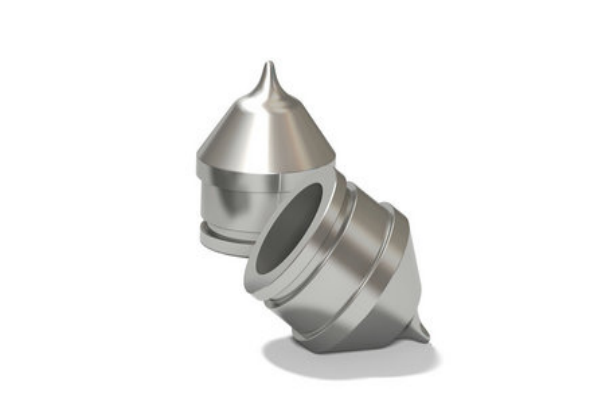

2. Spreaders
Anviloy® spreaders are used in areas where liquid aluminum is pouring into the mold and spreads by this cone to distribute it in the mold. It is often used in wheel die casting. Service time is multiple times higher compared to tool steel.

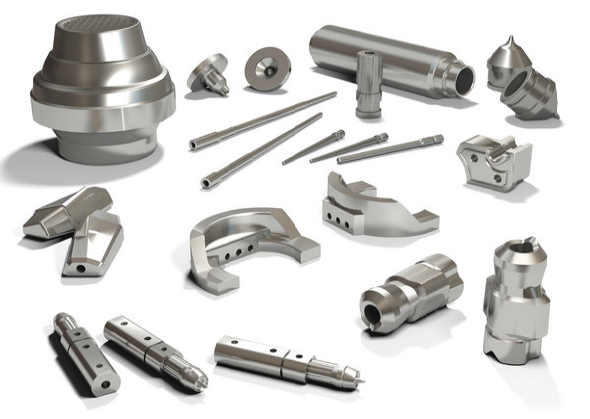

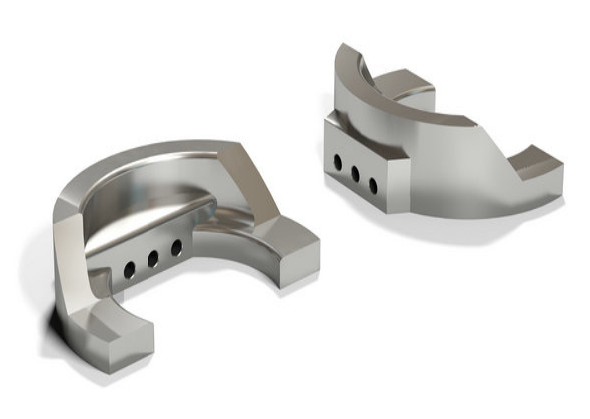

3. Anviloy® mold enhancement products
The benefits of Anviloy® mold enhancement products
(1) Reduced corrosion and erosion
(2) Increased form stability
(3) Improved stability of dimensions
(4) Fast removal of heat
(5) Minimized heat check
(6) Reduced soldering
(7) Minimized release angles
