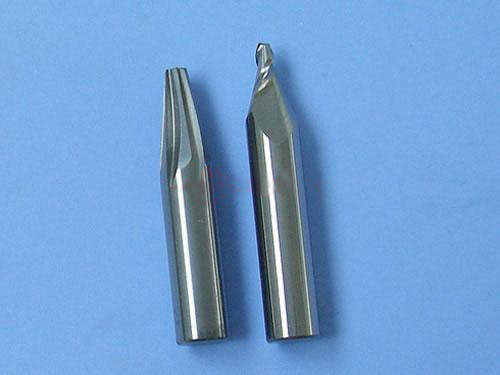

Tungsten Carbide Milling Cutter
Description
Tungsten carbide milling cutter, also known as tungsten carbide end mill, is made by micro-grain-carbide with excellent surface. It has smooth vibrationless running, thus significantly improving service life. Featuring excellent surface quality, best yield, low operating cost and high precision, tungsten carbide milling cutter is a best choice to increase productivity and profitability. We offer high performance carbide end mill which is suitable to meet ever demanding requirements.
Application
Tungsten carbide milling cutter is often used for removing rubber deposits, ice deposits, thermoplastic line markings, etc.
Performance of Tungsten Carbide Milling Cutter
| Grade | Density g/cm³ |
T.R.S MPa |
Hardness HRA |
Performance & Application Recommended | Approx Grades in China |
ISO |
| MK6A | 14.9 | 1860 | 92.0 | Fine grain alloy and good wear resistance. Used for semi-finishing of chilled cast iron, non-ferrous metals alloys, semi-finishing and finishing of hardened steel, alloy steel. | YG6A | K10 |
| MK8 | 14.7 | 2320 | 89.5 | High strength, impact and shock resistance higher than MK 6A, but wear resistance and cutting speed comparatively lower. Used for roughing of cast irons, non-ferrous metal and their alloys as well as non metallic materials at low cutting speed. | YG8A | K20 |
| MK10X | 14.5 | 2150 | 91.0. | Fine grain alloy and good wear resistance. Used for processing hard wood, veneer board, PCB, PVC and metals. | - | K10-K20 M20 |
| YS2T | 14.5 | 2350 | 92.0 | Fine grade alloy, high wear resistance, high bending strength, high resistance to bonding and high thermal strength. Used for machining of refractory alloys, stainless steel and high manganese steel, etc. | YS2T | K10-K20 M20 |
| SL10 | 14.8 | 2420 | 90.5 | High wear resistance, high bending strength, used for lead cutter in electrical line. | - | K20-K30 |
| G20 | 14.3 | 2360 | 90.0 | Conventional wear resistance, high bending strength, used for steel alloy, etc. | - | K20-K3 |
Package and Transportation
We pack tungsten carbide end mills in plywood case and send them by ocean or air.
Shanghai Landytop Industry Co.,Ltd. owns a highly-qualified technical team which has solid theoretical guidance and extremely rich experience in the aspects of powder metallurgy, press processing and shape processing. In addition, an energetic technical team with appropriate ages is full of powerful creative spirits and exploratory capabilities. Our technical team can provide samples or design tungsten carbide milling cutter (carbide end mill) according to different requirements of customers.
