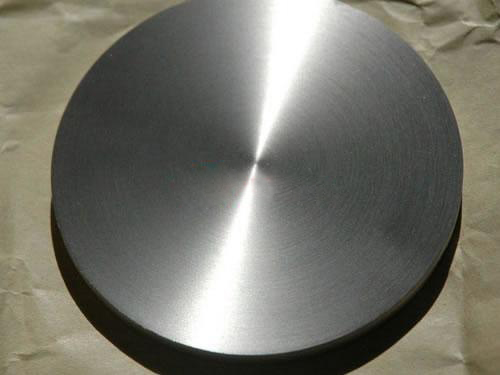

Niobium Target

Niobium Target

Description
Niobium target, also known as niobium sputtering target, features high ductility, high corrosion resistance and super conductivity. Its metallic impurities and gaseous impurities have been measured by known authorities around the world. For niobium sputtering target, we devote to offering our customers with high purities, fine and uniform grain size, and early target life size stability. We can also offer planar and rotary niobium targets according to customers' specifications.

Package and Transportation
We pack niobium sputtering targets and such niobium targets in plywood case and send them by ocean or air.

Commodity Niobium Target
Standard ASTM B393-89
Material RO4200-1, RO4210-2
Circular Targets Diameter (25~400 mm) × Thickness (3~28 mm)
Rectangular Targets Thickness (1~12.7 mm) × Width (~600 mm) × Length (~2000 mm)
Purity  ≥99.9%

Chemical Composition of Niobium Target

Chemistry PPM
Designation Chief component Impurities    maximum
Nb Ta Si Ni W Mo Ti Fe O C H N
Nb1 Remainder 700 50 50 50 30 20 50 150 40 15 30
Nb2 Remainder 1000 80 40 100 100 40 80 180 60 15 50
Related Products

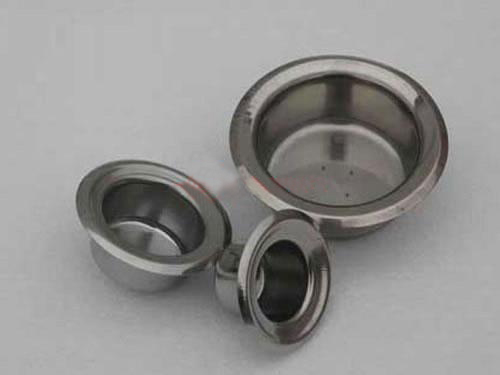

  • Niobium CrucibleWith high purity (≥99.9%), high level of resistance and excellent formability, our niobium crucible is appropriate for manufacturing synthetic polycrystalline diamonds. It is often used for high-pressure and high-temperature synthesis...
