Tungsten Carbide Saw
Description

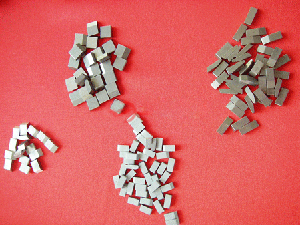

Tungsten carbide saw blades and cemented carbide saw tips are common tools used in wood processing.
The quality of the blade attaches much on the quality of those processed products. Choosing reasonable saw blade plays an important role in improving products' quality, shortening process cycle and reducing processing costs. Thus you should pay much attention to tungsten carbide saw blade choosing.
Package and Transportation
We pack tungsten carbide saw blades and cemented carbide saw tips in plywood case and send them by ocean or air.
Shanghai TallKee Refractory metals manufactures and supplies tungsten carbide saw blade and cemented carbide saw tips. For more information, please enter our website and learn more.
Properties and Applications of Tungsten Carbide Saw Blade
| MK6 | 14.9 | 2150 | 90 | Appropriate for processing hard wood, original wood, aluminum section bar, brass rod and cast iron. | YG6 | K10 |
| MK8 | 14.7 | 2320 | 89.5 | Appropriate for processing dry wood, soft wood, aluminum and brass, graphite and grass. | YG8 | K20 |
| MK8C | 14.7 | 2400 | 88.5 | Appropriate for processing soft and dry wood, general wood with loose knot, man-made marble, ceramics and grass. | YG8C | K20 |
| MK9T | 14.1 | 2200 | 90.5 | Appropriate for processing hard wood, non-ferrous meta, granite and marble. | - | - |
| MK11C | 14.4 | 2600 | 87.0 | Appropriate for cutting frozen wood, soft wood and original wood. | YG11C | K30-K40 |
| MK15C | 14 | 2700 | 86.5 | YG15C | K40 |
Common Types of Tungsten Carbide Saw Blade (Unit: mm)
| Type | D | d | s |
| Φ12 × Φ6 × s | 12 | 6 | 0.6-5.0 |
| Φ13 × Φ6 × s | 13 | 6 | 0.6-5.0 |
| Φ16 × Φ6 × s | 16 | 6 | 0.6-5.0 |
| Φ22 × Φ10 × s | 22 | 10 | 0.6-5.0 |
| Φ25 × Φ12 × s | 25 | 12 | 0.8-6.0 |
| Φ32 × Φ10 × s | 32 | 10 | 0.8-6.5 |
| Φ40 × Φ10 × s | 40 | 10 | 0.8-6.5 |
| Φ45 × Φ13 × s | 45 | 13 | 0.8-6.5 |
| Φ52 × Φ24.5 × s | 52 | 24.5 | 0.8-6.5 |
| Φ53 × Φ15 × s | 53 | 13 | 0.8-6.5 |
| Φ53 × Φ24.5 × s | 53 | 24.5 | 0.8-6.5 |
| Φ55 × Φ16 × s | 55 | 16 | 0.8-6.5 |
| Φ58 × Φ22 × s | 58 | 22 | 0.8-6.5 |
| Φ60 × Φ19 × s | 60 | 19 | 0.8-6.5 |
| Φ63 × Φ17 × s | 63 | 17 | 0.8-6.5 |
| Φ70 × Φ22 × s | 70 | 22 | 0.8-6-7.5 |
| Φ75 × Φ22 × s | 75 | 22 | 0.8-6-7.5 |
| Φ80 × Φ22 × s | 80 | 22 | 0.8-6-7.5 |
| Φ85 × Φ21 × s | 83 | 21 | 0.8-6-7.5 |
| Φ86.5 × Φ21.5 × s | 86.5 | 21.5 | 1.0-7.5 |
| Φ90 × Φ22 × s | 90 | 22 | 1.0-7.5 |
| Φ102 × Φ22 × s | 100 | 22 | 1.0-7.5 |
| Φ125 × Φ22 × s | 125 | 22 | 1.0-7.5 |
| Φ200 × Φ70 × s | 200 | 70 | 3.0-4.5 |
| Φ250 × Φ70 × s | 250 | 70 | 3.0-4.5 |
| Φ250 × Φ95 × s | 250 | 95 | 3.0-4.5 |
Special specifications can be customized according to customers’ requirements.
