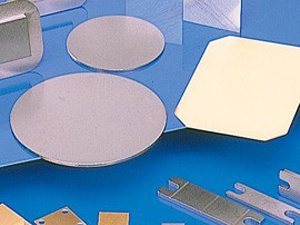

Copper Molybdenum Copper Alloy
Description
Copper molybdenum copper alloy, also known as CMC alloy, is a sandwich structured and flat-panel composite material. It uses pure molybdenum as the core material, and is covered with pure copper or dispersion strengthened copper on both sides.
Besides, copper molybdenum copper alloy has adjustable coefficient of thermal expansion, high thermal conductivity, and high thermal stability. The production process of it commonly uses method of rolling composite, plated composite and explosive forming. It has very strong interface bonding that can resist 850°C heat shock repeatedly and features no magnetism.
Application
Copper molybdenum copper alloy is mainly used as the bottom expansion and thermal conductivity channel of the heat sink, the lead frame and the multilayer printed circuit board (PCB).
Performance of Copper Molybdenum Copper Alloy
| Materials | Density (g/cm³) |
Thermal Conductivity W/moK |
CTE, ppm/°K 20-100℃ |
|
| Copper Metal Laminate | 1:1:1 Cu/Mo/Cu |
9.27-9.47 | 300-310 (x-y) 220-230 (z) |
9.6-10.0 |
| 1:2:1 Cu/Mo/Cu |
9.48-9.68 | 270-280 (x-y) 200-210 (z) |
8.5-8.9 | |
| 1:3:1 Cu/Mo/Cu |
9.6-9.8 | 240-250 (x-y) 180-190 (z) |
7.7-8.1 | |
| 1:4:1 Cu/Mo/Cu |
9.7-9.9 | 210-220 (x-y) 170-180 (z) |
6.8-7.2 | |
| 1:5:1 Cu/Mo/Cu |
9.74-9.94 | 195-200 (x-y) 165-170 (z) |
6.2-6.6 | |
| 13:74:13 Cu/Mo/Cu |
9.78-9.98 | 210-220 (x-y) 220-230 (z) |
5.7-6.1 | |
| 1:7:1 Cu/Mo70/Cu |
9.46 | 300-310 (x-y) 170-180 (z) |
7.2 |
Package and Transportation
We pack copper molybdenum copper alloy in plywood case and send them by ocean or air.
If you have any interest in our copper molybdenum copper alloy (CMC alloy) or other molybdenum alloy products, please feel free to contact us. Our company is a professional manufacturer and supplier of molybdenum products in China.
