Tungsten Copper Alloy Products

Material of resistance welding electrode

Parts for resistance welding equipment, electrode rods, shaft and packing materials, or as moulds for large convex welding machines, welding electrodes, seam welding wheels, electrode holders, plastic mould parts...

Stud nut electrode

In projection welding (such as automotive industry, bridge construction), lots of sheets and work pieces need to be connected by nuts. This requires high quality nut welding electrodes with not only long service time, but also high strength, hardness and wear resistance...

Submerged arc welding contact tips

Submerged arc welding usually works in heavy current and high temperature working environment, this requires SAW contact tips to have excellent wear resistance and electrical conductivity...

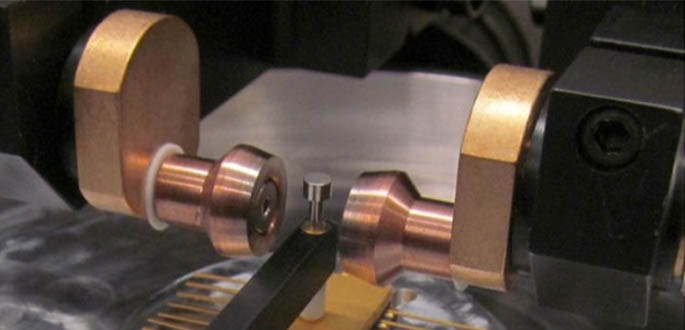

Seam Sealing Welding Roller Electrode

We are professional manufacturer in Copper Tungsten Electrodes used in sealed cap for transistors sealing welder...

Tungsten Electrode and Tungsten-Faced Electrode

Tungsten products, like tungsten electrodes and tungsten-faced electrodes, feature high melting point (3410°C), high creep resistance, low thermal expansion, high resistivity, low vapor pressure, good thermal conductivity and high density...

Molybdenum Electrodes and Molybdenum-faced Electrodes

Molybdenum is a kind of hard, silvery white metal with extremely high melting point (2610°C), low thermal expansion rate, high thermal conductivity, low vapor pressure, excellent corrosion resistance to molten metal and glass. Molybdenum products, like molybdenum electrodes...

Refractory Metal-faced Electrodes

Refractory metal-faced electrodes, WCu-faced electrode, tungsten-faced electrode, molybdenum-faced electrode...

Seam Welding Wheel

Seam welding wheels are welding electrodes used for seam welding machines. We supply seam welding wheels made of two kinds of materials: CuCrZr and 75WCu....

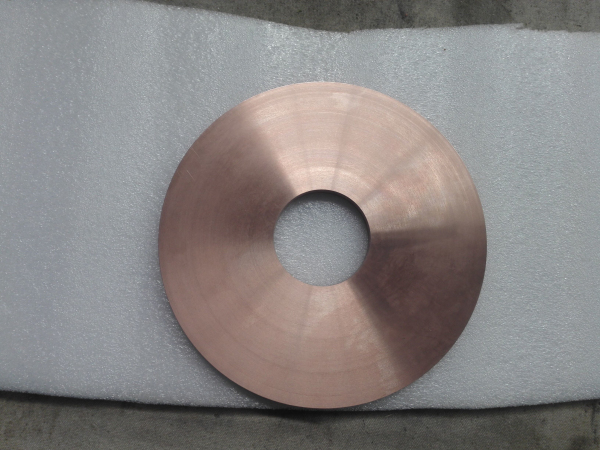

Tungsten copper material,block,rod,plate,disk

We can also supply stud nut electrodes, such as tungsten copper blocks, tungsten copper rods, tungsten copper plates, tungsten copper discs, and so on...

Copper Tungsten Rotary Electrode for PCD and PCBN erosion

Our copper tungsten rotary electrode has high physical and mechanical properties to answer the PCD tools / disk erosion need. Great efforts have been spent to research into and optimize our process to develop quality product for this application ...

Tungsten Copper Alloy
Tungsten Copper Alloy

By selecting high purity tungsten and oxygen-free copper, all of our tungsten copper alloys are produced by sintering and infiltrating process. In terms of different types, the composition of tungsten and copper ...

Molybdenum Copper Alloy
Molybdenum Copper Alloy

Molybdenum copper alloy is a composite material of molybdenum and copper which has adjustable thermal expansion coefficient and thermal conductivity. But the density of molybdenum copper is much...

Silver Tungsten Alloy
Silver Tungsten Alloy

Silver tungsten alloys are used in industrial and domestic circuit breaker applications where good weld and erosion resistance is important. The higher silver grades have higher conductivity, and the higher tungsten...

Copper Molybdenum Copper Alloy
Copper Molybdenum Copper Alloy

Copper molybdenum copper alloy (CMC alloy) is a sandwich structured and flat-panel composite material. It uses pure molybdenum as the core material, and is covered with pure copper or dispersion strengthened...

Description
By selecting high purity tungsten and oxygen-free copper, all of our tungsten copper alloy products are manufactured by sintering and infiltrating process or mixed sintering. In terms of different types, the composition of tungsten and copper are well-proportioned. These tungsten copper products possess excellent properties from both tungsten and copper. They are of high arc resistance, good electrical conductivity, high thermal conductivity, low thermal expansion as well as good sweat cooling characteristics.

Application of Tungsten Copper Alloy Products
1. These tungsten copper products are widely used in many industrial areas such as aerospace, power, electronic, metallurgy, and machinery.
2. They are also used as heat sinks for cooling device in electronic equipment and electronic packaging materials.
3. Tungsten copper alloy products are also adopted as electrodes for resistance welding.
4. They can be used for producing arcing contacts and vacuum contacts in high and medium voltage breakers.
5. These tungsten copper products can be used as the component of the pushing device in spacecrafts.

Classification
1. Tungsten Copper Alloy (WCu Alloy)
Tungsten copper alloy products are used where the combination of high heat resistance, high electrical and/or thermal conductivity, and low thermal expansion are needed. Some of the applications are in electric resistance welding, as electrical contacts, and as heat sinks. As contact material, the alloy is resistant to erosion by electric arc. These tungsten copper products are also used in electrodes for electrical discharge machining and electrochemical machining.
1) Tungsten Copper Electrode
These tungsten copper alloy products are widely used in making tungsten carbide and PCD.
2) Tungsten Copper Heat Sink
These tungsten copper products are extensively used in thermal mounting plates, chip carriers, flanges, and frames for RF, light emitting diodes and detectors, laser diode packages like pulse, single emitter, bars and complex carriers for optoelectronics amplifiers, receivers, transmitters, tunable lasers.
3) Tungsten Copper Switch Contact
These tungsten copper alloy products are used for such heavy duty contact applications as switch contacts, circuit breakers, arcing tips or arc runners, heavy duty conductors, relays and switches.
2. Molybdenum Copper Alloy
Since the Mo-Cu material has no adhesive agent, and the material has high thermal conductivity and thermal expansion coefficient, these properties are well matched with ceramic material and a semiconductor material for the electronics industry. Molybdenum copper material is more ablative, more plastic and workable than molybdenum, so it can be used as high-temperature parts for the rockets and missiles in lower temperature, and it can also replace the molybdenum as the components in the other weapons.
3. Silver Copper Alloy
Silver tungsten materials are used in industrial and domestic circuit breaker applications where good weld and erosion resistance is important.
4. Copper Molybdenum Copper Alloy
CMC is mainly used as the bottom expansion and thermal conductivity channel of the heat sink, the lead frame and the multilayer printed circuit board (PCB).
