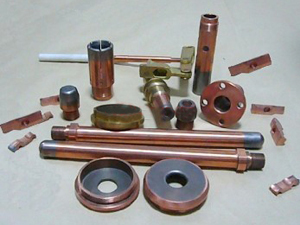

Tungsten Copper Switch Contact
Description
Tungsten copper switch contact can be used as electrical contact material, owing to the good performance of electrical conductivity. The high electrical and thermal conductivity of copper are combined with the arc-resistant and non-welding properties of tungsten or their carbides to form an extensive series of compositions. Each tungsten copper product is designed to give the best performance for your particular application.
These materials are used for such heavy duty contact applications as:
Switch contacts, circuit breakers, air & oil immersed (SF6 circuit breakers)
Arcing tips or arc runners
Make & break contacts
Heavy duty conductors, relays & switches.
Package and Transportation
We pack tungsten copper switch contact in plywood case and send them by ocean or air.
Founded in 2008, Shanghai Landytop Industry Co.,Ltd. specializes in manufacturing tungsten copper switch contact. It combines tungsten and copper's good performance, superior in utilization. If you are interested in this tungsten copper product, please contact us and we will quote you the price for your reference.
Performance of Tungsten Copper Switch Contact
| Type | Density g/cm3 |
Conductivity %IACS |
HB MPa |
Size mm |
| WCu50 | 11.9~12.3 | ≥55 | 1130~1180 | Tube: Ø3~390 Length<500 Sheet: Width<390 Length<500 Special type: Width<390 Length<500 |
| WCu40 | 12.8~13.0 | ≥47 | ≥1375 | |
| WCu30 | 13.8~14.4 | ≥42 | ≥1720 | |
| WCu20 | 15.2~15.6 | ≥34 | ≥2160 | |
| WCu10 | 16.8~17.2 | ≥27 | ≥2550 | |
| WCu7 | 17.3~17.8 | ≥26 | ≥2900 |
